TESTING
Pump testing facilities designed to deliver peak performance that exceeds industry standards.
TESTING
Pump testing facilities designed to deliver peak performance that exceeds industry standards.
Cutting-Edge Facilities
ExceedING Industry Standards.

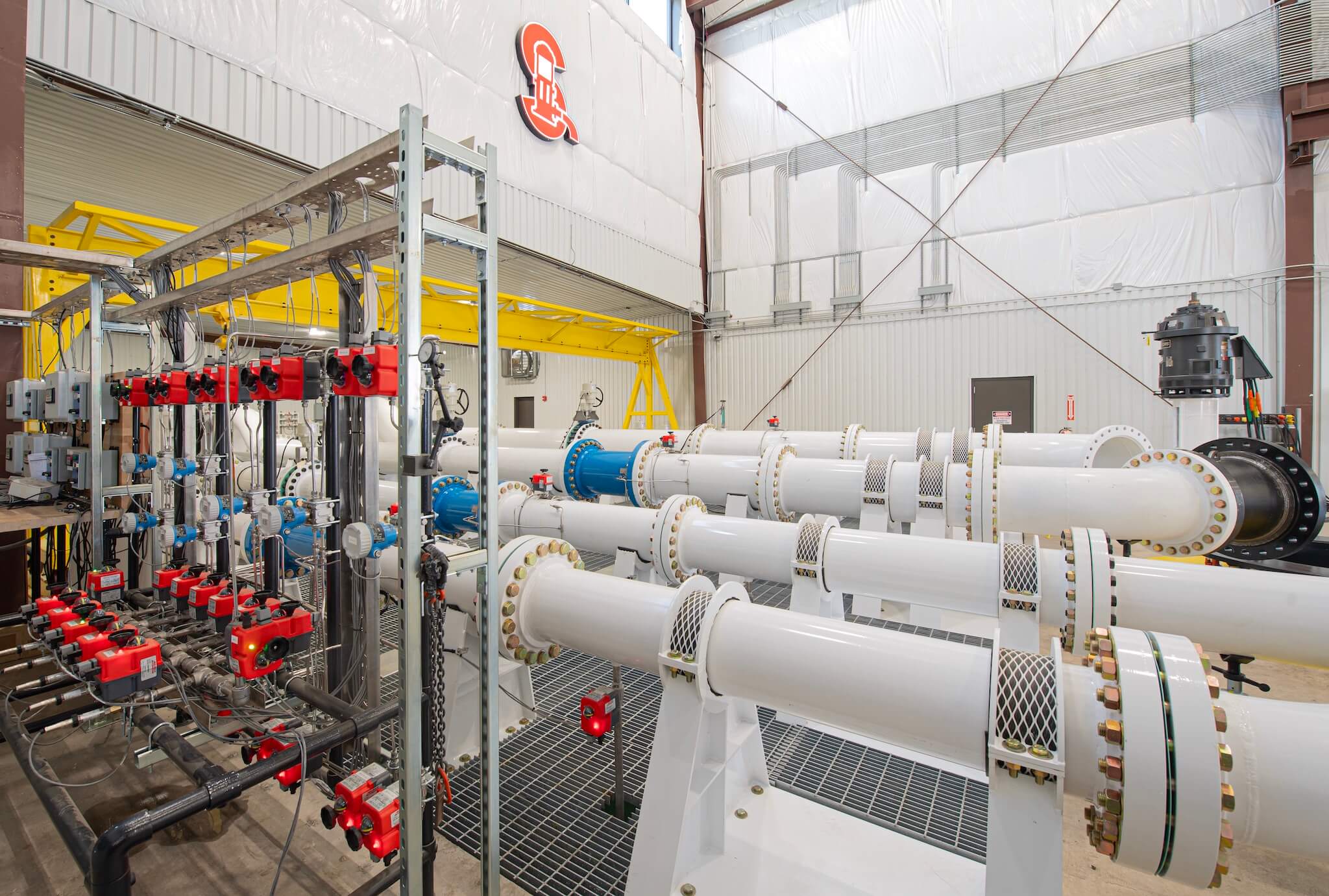

Our leading-edge facilities include one of the largest and most advanced vertical turbine testing centers in North America. Featuring more than 35,000 sq ft of dedicated space, including a full-submersion water tank, each stage of the testing area is designed to meet and exceed the specific requirements for municipal, industrial, and commercial pumping systems to ensure maximum performance.
The technology, provided by Lubbock-based SitePro, Inc., allows SIMFLO to enable remote witness testing from anywhere in the world, thus saving customers and engineering firms significant time, expense, and resources.
ExceedING Industry Standards.
Features
Detail at every step.
Testing Facilities
Detail at every step.
Testing Facilities
- State-of-the-art training room and conference area, overlooking test wells up to 80’ deep, to allow for string testing of vertical lineshaft and submersible turbine pumps

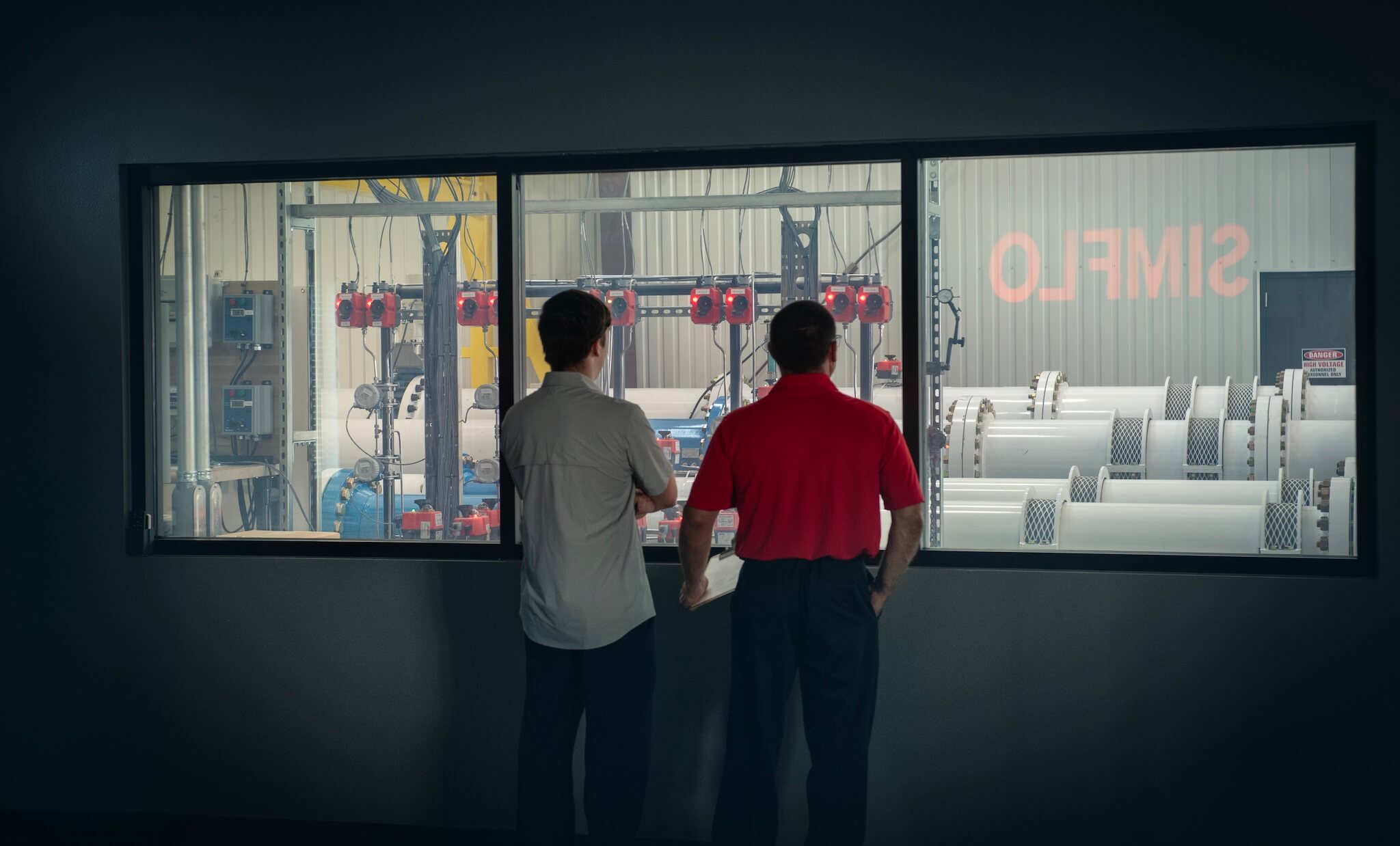

- One-of-a-kind witness test experience with
a full view of lab test setup and readouts - State-of-the-art metering and controls
- High cranes – facilitates installation and provides solutions for unique construction and specialty submersible motors (Long motors / shrouded motors)
TECHNICAL SPECIFICATIONS
Industry leading Technology.
Performance Assurance
Industry leading Technology.
Performance Assurance

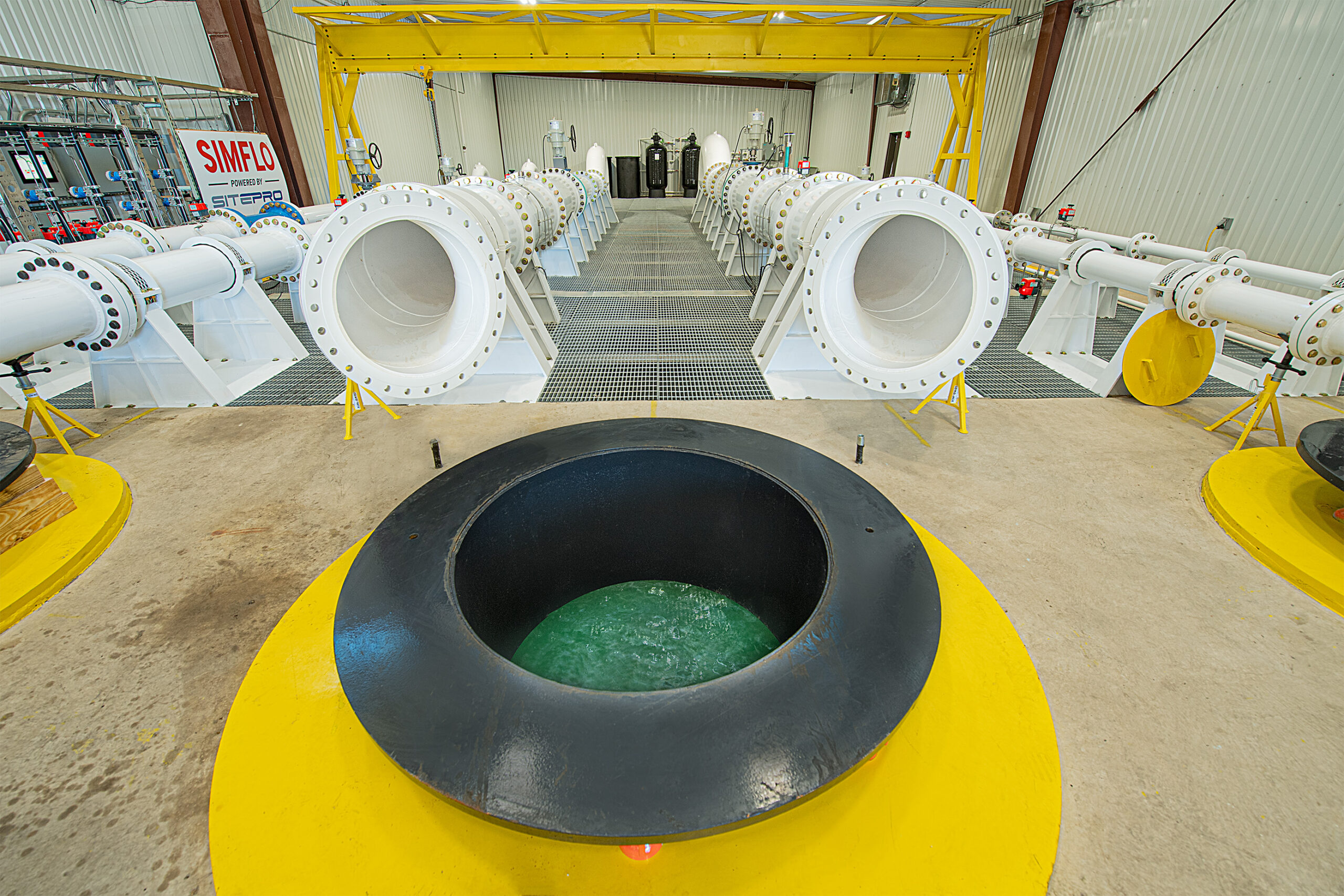

- Casing depths 40’ to 80’ deep, and from 3’ to 5’ in diameter
- 500,000 gallon sump/tank capacity – allows for sustained operation at high flow rates
- 2,000 HP low and medium voltage service – high power pumps – at common voltages
- VFD – multi-speed/reduced speed testing
- 14.6 and 40.6 compliant meeting HI standards
MULTIPLE TESTING FACILITIES
To FIT YOUR NEEDS
SIMFLO has three testing facilities to fit project needs based on location and testing requirements for vertical, mixed flow, axial flow and submersible pumps. Having multiple testing locations, SIMFLO offers a unique ability to expedite testing and meet strict scheduling demands.
To FIT YOUR NEEDS
Lubbock, Texas
East Campus
Electrical:
460/2,300/4,160 – VFD
Maximum Motor Capacity:
2,000 HP
Flow Testing Limit:
44,000 GPM
Pressure Testing Limit:
1,500 psig
Caisson Diameters:
36”, 48”, 60”
Maximum Caisson Depth:
80′
Tank Capacity:
500,000 Gallons
Lines Available:
4”, 8”, 12”, 14”, 20”, and 30” Diameters
Lubbock, Texas
West Campus
Electrical:
230/460 – Across the line
Maximum Motor Capacity:
300 HP
Flow Testing Limit:
4,000 GPM
Pressure Testing Limit:
740 psig
Caisson Diameters:
16”, 24”
Maximum Caisson Depth:
40′
Tank Capacity:
30,000 Gallons
Lines Available:
4” and 10” Diameters
Willcox, ARIZONA
Electrical:
460/2,300/4,160 – Soft start across the line
Maximum Motor Capacity:
1,000 HP (Medium Voltage – 625 HP)
Flow Testing Limit:
33,000 GPM
Pressure Testing Limit:
740 psig
Caisson Diameters:
24”, 36”, 72”
Maximum Caisson Depth:
80′
Tank Capacity:
230,000 Gallons
Lines Available:
6”, 14”, and 24” Diameters
